    15KW IGBT High Efficiency Induction Heater For melting 1~5KG gold

    Ask Lasest Price
    Brand Name : GY
    Model Number : GY-15A
    Certification : CE,SGS,FC,ROSH
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300PC/MONTH
    Delivery Time : 3workdays
    • Product Details
    • Company Profile

    15KW IGBT High Efficiency Induction Heater For melting 1~5KG gold

    15KW IGBT High Efficiency Induction Heater For melting 1~5KG gold


    An induction furnace uses induction to heat metal to its melting point. Once molten,

    the high frequency magnetic field can also be used to stir the hot metal, which is useful

    in ensuring that alloying additions are fully mixed into the melt. Most induction furnaces

    consist of a tube of water cooled copper rings surrounding a container of refractory material.

    Induction furnaces are used in most modern foundries as a cleaner method of melting metals

    than a reverberatory furnace or a cupola. Sizes range from a kilogram of capacity to a hundred

    tonnes capacity. Induction furnaces often emit a high pitched whine or hum when they are running,

    depending on their operating frequency. Metals melted include iron and steel, copper, aluminium,

    and precious metals. Because it is a clean and non contact process it can be used in a vacuum or

    inert atmosphere.

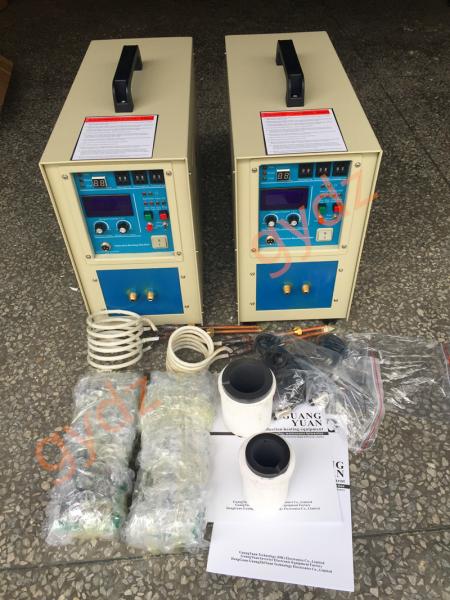

    Main Part:

    1>High Frequency Induction Heater 15KW control by MOSFET
    2>1~5KG Small graphite crucible with white quartz cover

    Main Feature:

    1>Good at melting small weight pure gold,silver, platinum,copper,brass.
    2>Fast melting,low noise,good for environment.
    3>Easy change graphite crucible.
    4>SGS,CE,ROSH,FCC Approve.

    Extra accessories accept choose,
    1>Chiller or water pump
    2>Customer design Coil
    3>Crucible Tongs
    4>Heat-Resistant Gloves
    5>Protective apron


    Parameter:

    ModelGY-15A (Single phase)
    work power180V-250V
    input current35A
    Fluctuating output power15KW
    fluctuating frequency30-100KHZ
    output current200-600A
    the flow rate of cooling water0.06-0.12Mpa 7.5L/Min
    water temperature protection point40C
    product size570x230x450mm
    net weight27.5kgs

    Induction Heater List


    About service question:
    Q: Why choose GuangYuan Company?
    A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

    price,service,delivery time,we all have large advantage.

    Q:How to choose suiteble machine?
    A:You can tell us your application,need forging,hardening,welding,melting or other,

    pass me workpiece material & size,Temperature requirement and heating time requirement.

    Then we will recommend fit machine for you reference.

    Q:How about the machine delivery time?
    A: Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.

    Q:How about the machine warranty?
    A:Our goods support one year warranty not by personal purpose,support technical service all life.


    During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
